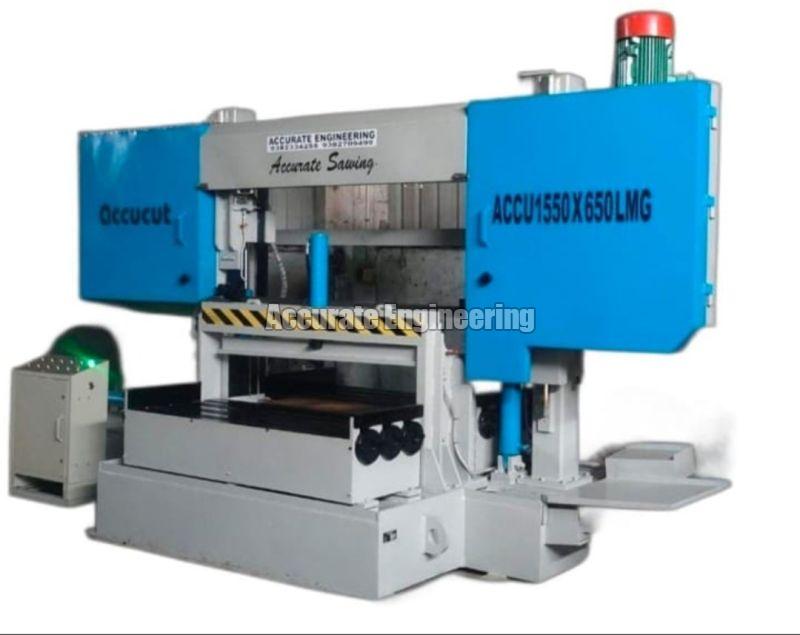

ACCUUCT 1500 X 650 LMG AUTOMATIC SPB

We are offering Special Purpose band saw machine with LMG Pattern for Plate &Round Cutting

Specification

Brand:-ACCUCUT

1.Double Column with Heavy Duty Linear Rial and Block Assembly.

2.Cutting Capacity   Round  : 650 mm

                          Flat         : 1500[W]x650[H] mm

3. Blade Speed                   : Variable through VFD

4. Drive Motor Rating          : 20HP

5. Hydraulic Motor               : 3 HP

6.Coolant Motor                  : 1/6HP

7. Cutting Feed                   : Variable by flow control valve

8. Height Adjustment           : Through Control Panel

9.Blade  Width                    : 67 mm

10.One side moving blade guide box.

11.Fully heavy duty welded torsion proof structure.

12.Main Support with Hydraulic Holding

13.Inbuilt In feed and Out feed rollers

14.Heavy Duty Helical Bevel Gear Box

15.Rotating cleaning wire brush

16.Heavy Duty Rial & Block Arrangements[HIWIN]

17.Heavy Duty Square Twin Columns

 Optional Accessories

1.Material Support Stand
2.Variable Frequency Drive
